Teflon Smooth Hose

Description:

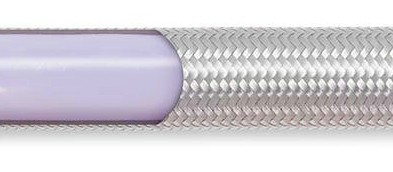

A smooth bore extrusion of polytetrafluorethylene (PTFE) covered with a layer of stainless steel (SS304) high tensile wire braid for pressure enhancement.

Materials properties:

PTFE is an engineering plastic resin in the Fluorocarbon group. PTFE an extremely low co-efficient of friction, excellent anti-stick properties, does not tast, smell, burn or age, and is not affected by UV light.

Temperature range : -73℃ - +260 ℃

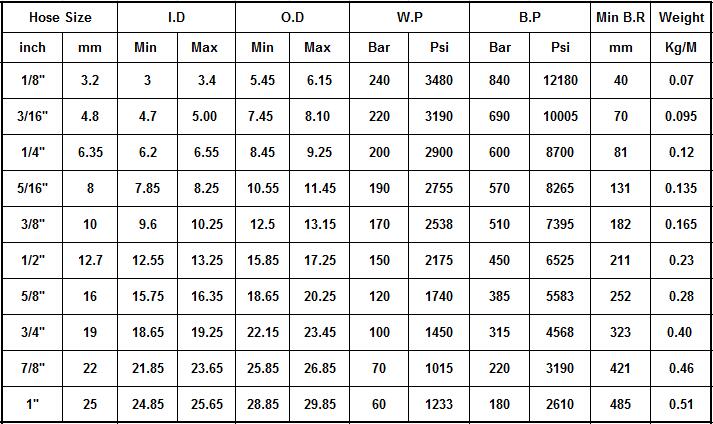

Pressure capability:

The pressure ratings in this data sheet have been measured with the hose in a condition at 20℃ with correct hydraulic style fittings crimp/swage attached using specifically designed crimp/swage sleeves. In general, the stated working pressure applies throughout the temperature range.

Supply lengths:

Due to the required integrity of the PTFE core, Supply lengths for bulk hose ordered may be random.
