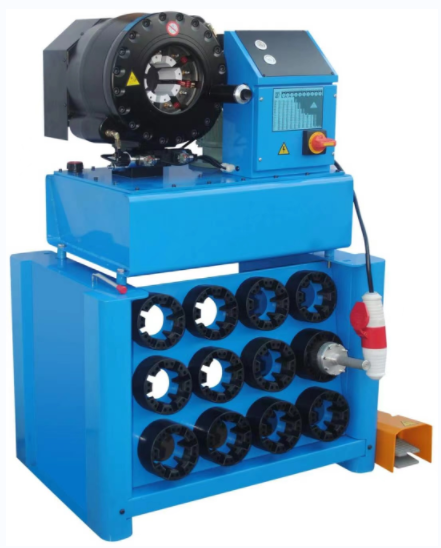

PF - 51
PF-51 is our latest desktop model which can reduce the operator’s labor intensity. By adopting the advanced hydraulic valve it can ensure efficient and reliable work efficiency. And the user-friendly design can save more time during the crimping processing.
Application: Suitable for engineering machinery, auto, and joint of high pressure hose assembly
TECHNICAL SPECIFICATION:
|
扣压范围 |
Crimping Range |
φ6mm – φ51mm |
|
标准模具 |
Die Sets |
10 sets |
|
模具型号 |
Die Size |
104 x 66 |
|
最大通过直径 |
Max Open (Without Die) |
117 mm |
|
开口范围 |
Opening Range |
+20 mm |
|
扣压力 |
Crimping Force( ton) |
440T |
|
扣压频率 |
Crimping Speed |
510 Crimping Per Hour |
|
系统压力 |
Systematic Pressure |
31.5 MPA |
|
耗电功率 |
Power |
4 KW |
|
电源 |
Voltage |
380V- 3 – 50 HZ |
|
整机重量 |
Weight ( kg) |
298 KGS |
|
外形尺寸 |
Volume: |
700 x 600 x 900 mm |
-
*
